Testing Center

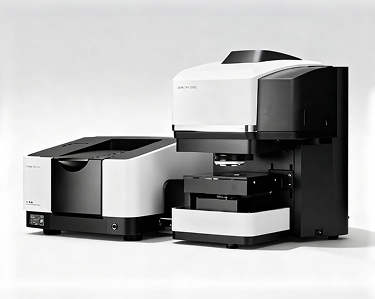

SHIMADZU/IRXross+AIM-Sight

Infrared Host Resolution: 0.25 cm⁻¹

Infrared Host Spectral Range: 7800~350 cm⁻¹

Infrared Host Signal-to-Noise Ratio: 55000:1

Infrared Microscope Spectral Range: 5000~700 cm⁻¹

Infrared Microscope Signal-to-Noise Ratio: 30000:1

Thermo Fisher/NICOLET IS5

Infrared Host Resolution: Better than 0.8 cm⁻¹

Infrared Host Spectral Range: 7800–350 cm⁻¹

Infrared Host Signal-to-Noise Ratio: Better than 1×10⁻⁵ AU

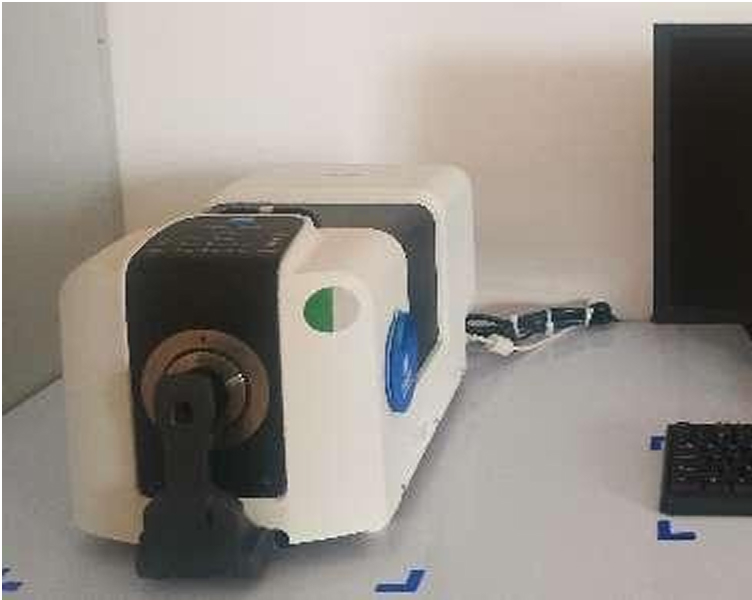

Konica Minolta

Scan Range: 360–740 nm

Test Item: Color Evaluation

Spain - Sensofar

Test Accuracy: 0.01 nm

Test Item: Roughness Testing

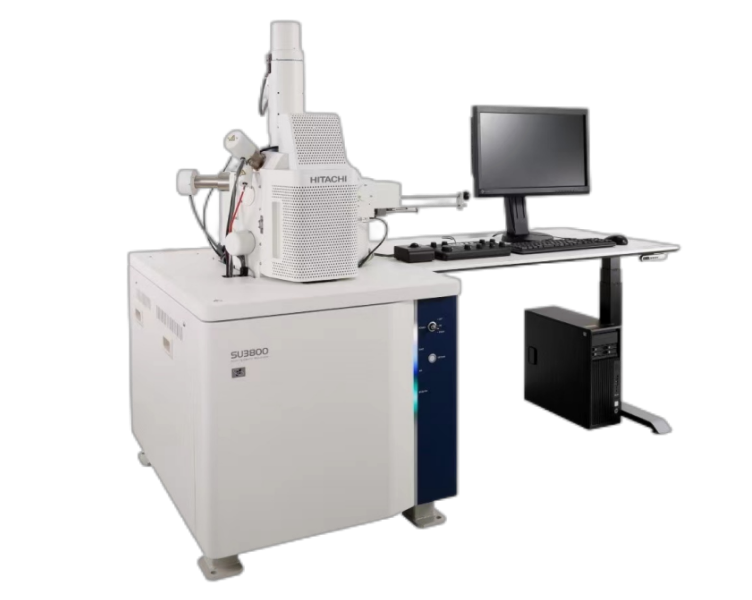

HITACHI/SU3800

Electron Microscope Type: Tungsten Filament Scanning Electron Microscope

Functions: Observation and measurement of microstructural features on material surfaces

Qualitative and quantitative analysis of foreign particle composition, elemental distribution

Key Specifications:

SE Probe Resolution: 3.0nm @ 30kV, WD=5mm

15.0nm @ 1kV, WD=5mm

BSE Probe Resolution: 4.0 nm @ 30 kV, WD=5 mm

Magnification Range: 5–300,000×

Accelerating Voltage: 0.3–30 kV

Elemental Analysis Range: Be⁴ to Cf⁹⁸

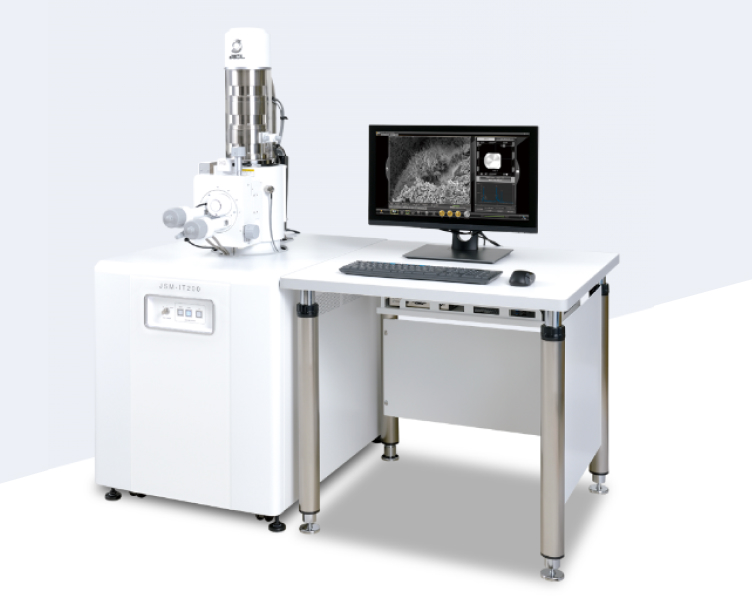

JEOL/JSM-IT200

Electron Microscope Type: Tungsten Filament Scanning Electron Microscope

Functions:

Observation and measurement of microstructural features on material surfaces

Qualitative and quantitative analysis of foreign particle composition, elemental distribution

Key Specifications:

SE Probe Resolution:

3.0 nm @ 30 kV, WD=5 mm

15.0 nm @ 1 kV, WD=5 mm

BSE Probe Resolution: 4.0 nm @ 30 kV, WD=5 mm

Magnification Range: 5–300,000×

Accelerating Voltage: 0.3–30 kV

Elemental Analysis Range: Be⁴ to Cf⁹⁸

Keyence / VHX-7000

Magnification Range: 20×–200×, 200×–2000×

Light Sources: Coaxial light (reflected), coaxial polarized light, ring light, ring polarized light, hybrid illumination.

Maximum Stitching Size: 9cm × 9cm

Maximum Photography Height: 6cm

Features: 2D Stitching, 3D Stitching, 3D Depth Synthesis, Roughness Analysis

Leica/DMI8C

Magnification: 5×–100×, 50×–1000×

XY Stage: Travel range 100×50 mm, compatible with 10 mm, 20 mm, and 40 mm round holes for versatile sample sizes

Observation Modes: Reflected light bright field, HDF high-definition dark field

Automatic Dual-Zone Temperature Environmental Test Chamber:

Temperature Range: -65°C to 150°C

Low-Resistance Online Test System:

Resistance Measurement: 10⁻³ to 10⁶ Ω

Test Channels: 120

Thermal Shock Test Chamber:

Temperature Range: -70°C to 200°C

Temperature Fluctuation: ±0.5°C

Conductance Resistance Evaluation System:

Resistance Measurement: 10⁻³ to 10⁶ Ω

Test Channels: 120

High and Low Temperature (Humidity) Test Chamber:

Temperature Range: -40°C to 150°C

Humidity Range: (25~98)%RH

Surface Insulation Resistance Tester:

Resistance Measurement: 10⁶ to 10¹³ Ω

Low-Voltage Test Channels: Voltage 200V - 160 channels

High-Voltage Test Channels: Voltage 1000V - 48 channels

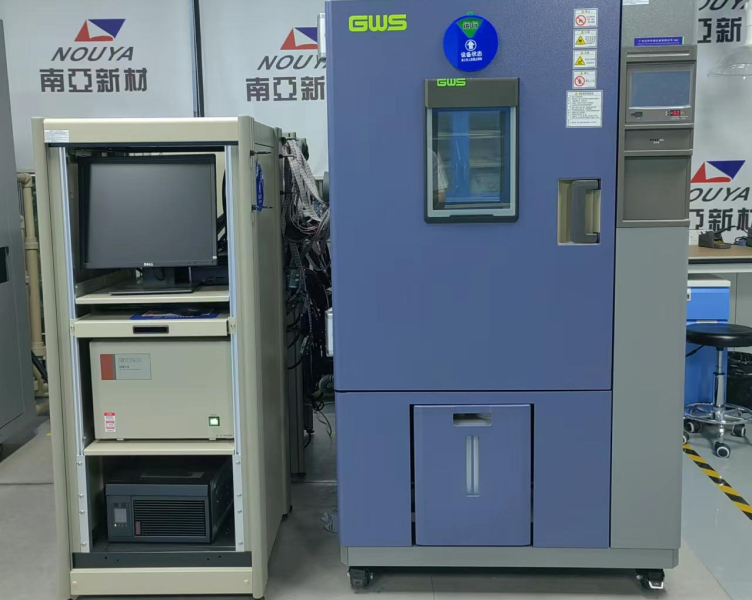

Constant Temperature and Humidity Chamber:

Temperature Range: Ambient ~ 100°C

Humidity Range: (10~98)%RH

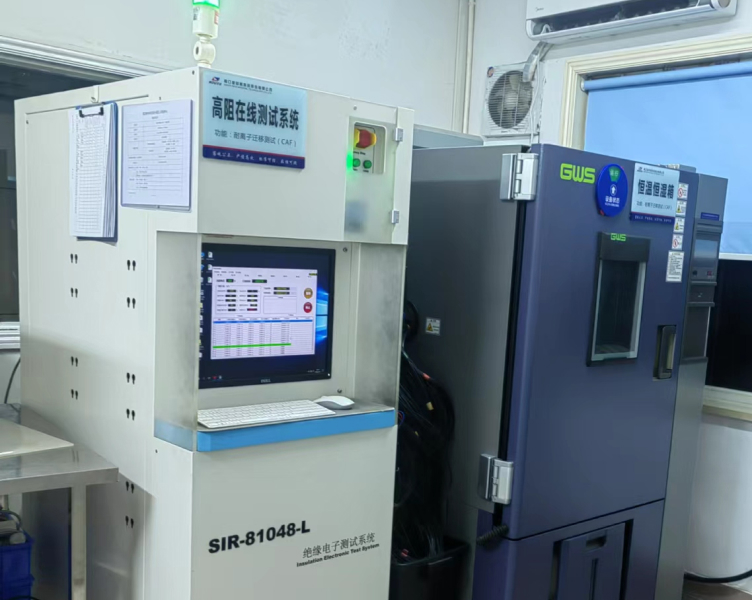

High Resistance Online Test System: (200V)

Resistance Measurement: 10⁶ ～ 10¹³ Ω

Test Channels: 200

Constant Temperature and Humidity Chamber:

Temperature Range: -25 to 100°C

Humidity Range: (10 to 98)% RH

High Resistance Online Test System: (1000V)

Resistance Measurement: 10⁶ to 10¹³ Ω

Test Channels: 256

Baiyi T-01L-02

Test Temperature Range: -20~280°C

Cycle Count: 1~9999 cycles

Duration: 0~999 seconds

PCT-350

Temperature Range: RT+10°C to 132°C

Humidity Range: 100%RH saturated vapor

Pressure: Atmospheric pressure +0 to 2 kg/cm²

Internal Dimensions (Φ × D): 30 cm × 45 cm

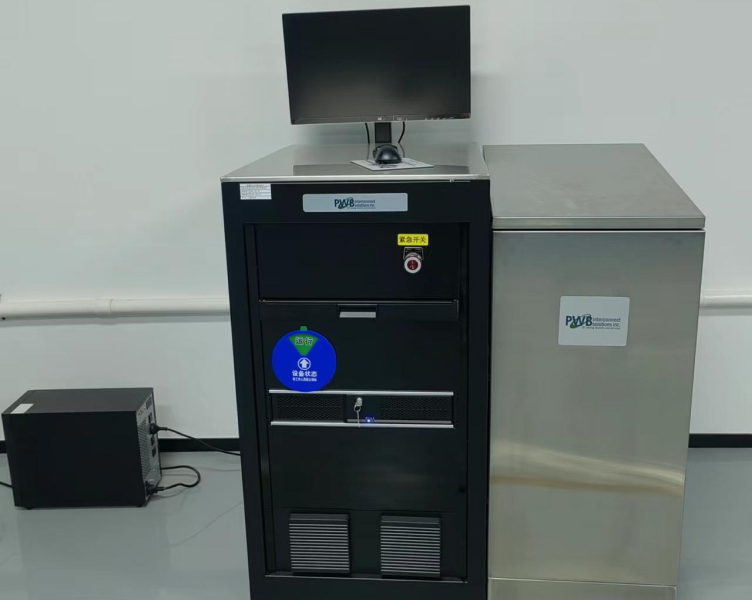

PWB IST-HC

Test Temperature Range: Ambient ~ 260°C

Heating and Cooling: Heating time - 3 min, Cooling time - Automated

Effective Resistance Measurement Range:

① Power = 0.1 ~ 5 Ohms

② Sense = 0.1 ~ 10 Ohms

Measurement Accuracy:

①±5 mΩ for readings <500 mΩ;

②±1% for measurements >500 mΩ

Test Channels: Single-ended/Dual-ended testing: 8 ports

Jinlida/G-F8820-LF

Temperature Zones: 8 zones (top and bottom)

Maximum PCB Width: 500mm

Temperature Control Range: Ambient temperature to 350°C

Temperature Control Accuracy: ±1°C

PCB Temperature Distribution Deviation: ±2°C

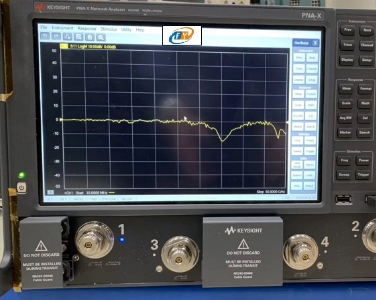

Keysight Technologies/N5245B Four-Port

Function: Insertion Loss (SMA Method, Delta 4.0L Method)

Key Specifications:

Frequency Range: 900Hz to 50GHz

Extended Range: 110GHz

Keysight Technologies E5080B

Function: Dielectric Constant  Dielectric Loss (SPDR Method & Strip Line Method)

Key Specifications:

Frequency Range: 900Hz to 20GHz

SPDR Fixture Frequency: 2.5GHz  5GHz  10GHz  15GHz

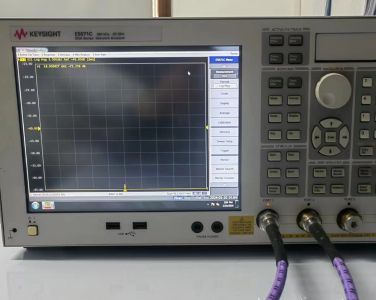

Keysight Technologies  E5071C

Function: Dielectric Constant  Dielectric Loss (SPDR Method & Strip Line Method)

Key Specifications:

Frequency Range: 900Hz to 20GHz

SPDR Fixture Frequency: 2.5GHz  5GHz  10GHz  15GHz

Strip Line Fixture: 900Hz to 18GHz

KAELUS

Function: PIM Value Testing

Key Specifications:

Frequency Range:

IBA0850A    869MHz–894MHz

IBA1921A    1930MHz–1990MHz

IBA2600A    2620MHz–2690MHz

Taiwan Hua Yi SE7451

AC Withstand Voltage:

Output Rating: 5KV/100mA

Output Voltage Accuracy (kV): ±(1%*Set Voltage + 0.5%*Test Range)

Output Frequency: 50Hz/60Hz ±0.1%

DC Withstand Voltage:

Output Rating: 6KV/10mA

Output Voltage Accuracy (kV): ±(1%*Set Voltage + 0.5%*Test Range)

Insulation Resistance:

Output Rating: 6kVDC/50000MΩ

Output Voltage Accuracy (kV): ±(1%*Set Voltage + 0.5%*Test Range)

Shanghai JingTian/HVR-JT

Bunsen burner: Tube diameter 9.5mm ± 0.5mm

Methane gas flow rate: 0.03~0.3 L/min

Shanghai JingTian/NDH-JT

Operating Voltage Range: 0~12.5KV

Operating Current Range: 0~30mA

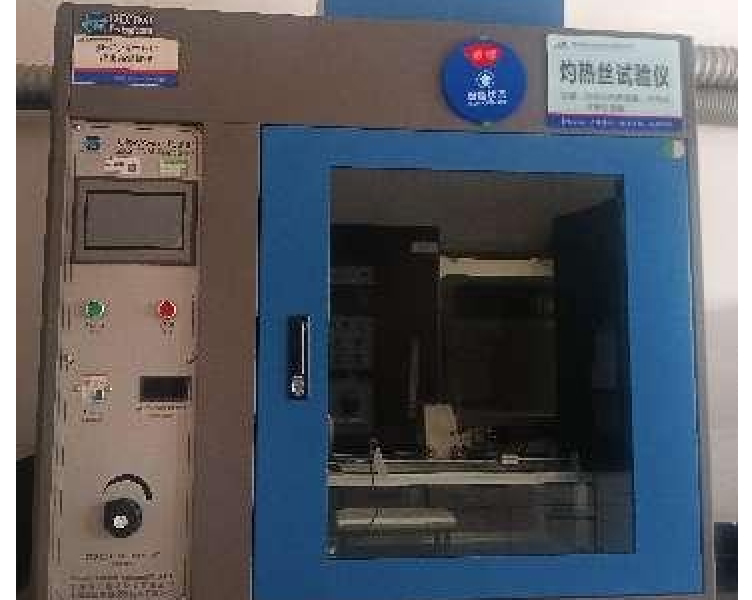

Shanghai JingTian/ZRS-JT/M

Test Temperature Range: 0~1000℃

Shanghai JingTian / LDQ-JT

Operating Voltage Range: 0~1000V

SHIMADZU/AGS-X 10KN

Maximum load capacity of main unit: 10 kN

Sensors: One 0.5-grade 1kN sensor, one 50N sensor

Test speed range: 0.001–2000 mm/min

Data acquisition interval: 1 millisecond (i.e., 1000 data sets acquired per second, 4 channels acquired simultaneously)

Crosshead speed accuracy: ±0.1% of set speed

Functions: Peel strength, tensile strength, ductility, flexural strength

Temperature range: Room temperature to 1000°C

Temperature range: Room temperature to 1000°C

Temperature range: Room temperature to 725°C

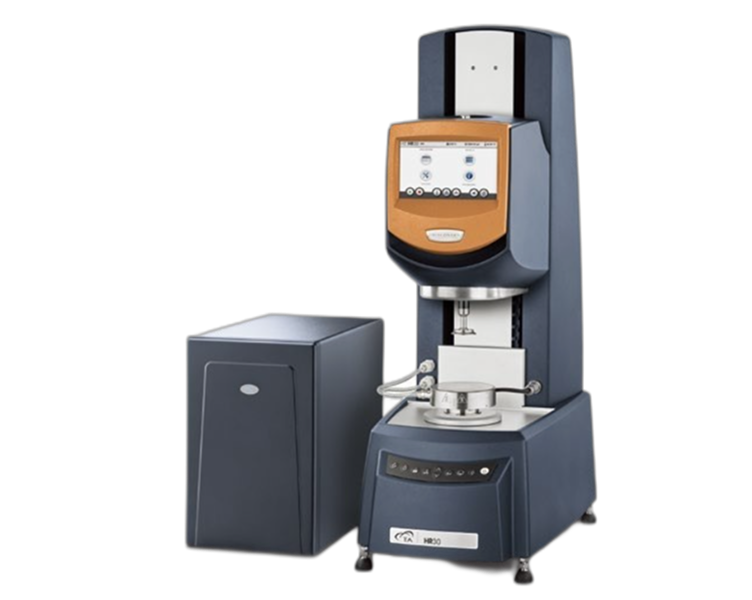

TA/Hybrid Rheometer HR20

Maximum Torque: 200 mN·m

Torque Resolution: 0.3 nN·m

Function: Rotational Kinematic Viscosity

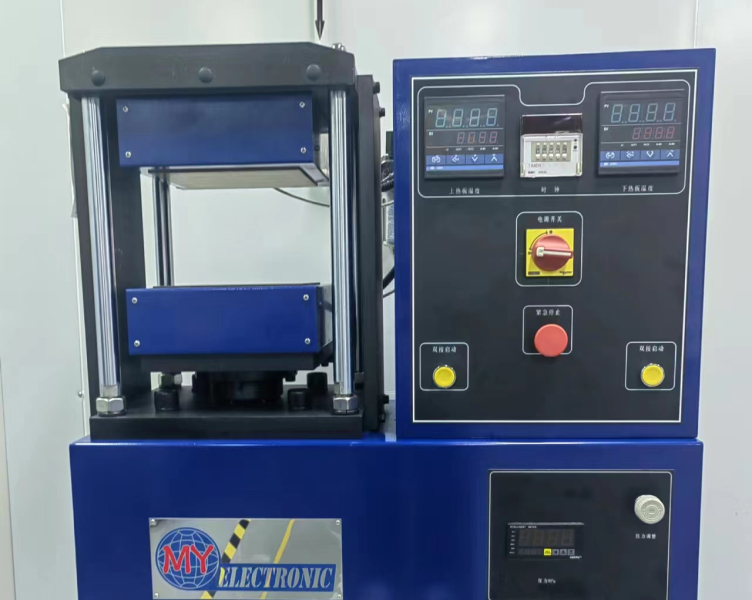

Lin'an Meiya/G-F8820-LF

Equipment Capacity (kg): 2000

Hot Plate Dimensions (mm): 200*200

Operating Temperature (°C): 200 (max)

Temperature Control Accuracy: ±1°C

Operating Pressure (bar): >6

Function: Resin Flow Rate

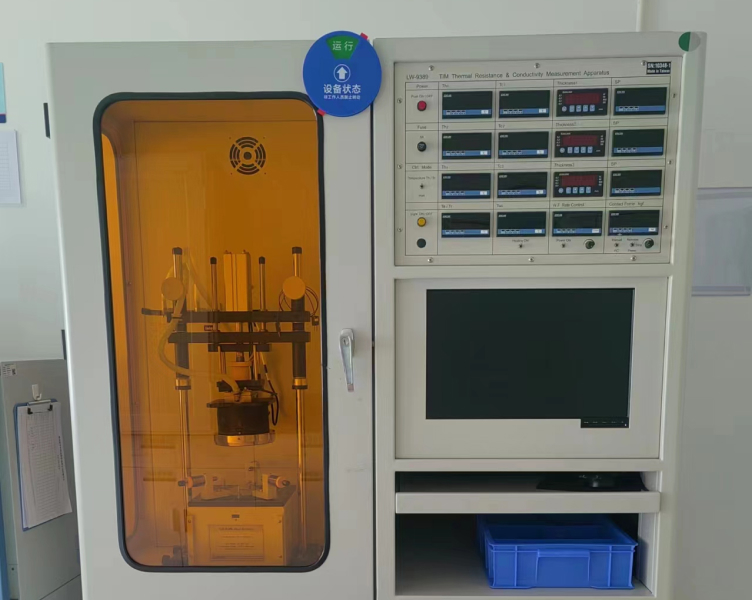

Rui Ling Technology/LW-9389

Test Pressure Range: (5 ~ 100) psi

Maximum Heating Power: 160W

Maximum Heating Temperature at Hot End: 180℃

Cold End Temperature Range: Ambient +3℃ to 50℃

Functions: Thermal Conductivity, Thermal Resistance
